Industrial Application for our Media



Moving bed media for Moving bed system

BCN009 Moving  Bed Media

BCN-009 : Moving bed filter for commercial fish farming and koi / ornament filter systems. The resulting in moving bed is self cleaning and requires less space and maintenance. While using as static bed filter, the media is excellent at trapping fine solids and cleaned with only a minimal amount of disturbance.
Specific surface : 836 m2/m3
Protected surface : 494 m2/m3
Specific weight : 165 kg/m3
Material : HDPE
Density : 0.95

BCN012KLL


HIGH-END PRODUCT
High Specific Surface( HSS)Media Premiun Class Model



BCN-012 KLL: Moving bed media
specificly designed for Nitrification and Denitrification
Specific surface : 859 m2/m3
Protected surface : 704 m2/m3
Specific weight : 150 kg/m3
Material : HDPE
Density : 0.95



------------------------------------------------------------> Click ที่ภาพเพื่อดูClip Vedio <-----------------------------------------------------------------



BCN009



การเคลื่อนที่ของ BCN-009 แบบ Moving Bed ในภาชนะที่มี
ปริมาตร ขนาดจำกัด

BCN009
การเคลื่อนที่ของ BCN-009 ในสภาวะที่น้ำมีค่า TSSสูงกว่าปกติอย่างมาก
BCN009
ความสามารถในการดำน้ำของ BCN-009 ที่ระดับความลึกถึง 1.90 เมตร



BCN009



ถังกรองชนิดผสมแบบ Fix Bed และ Moving bed

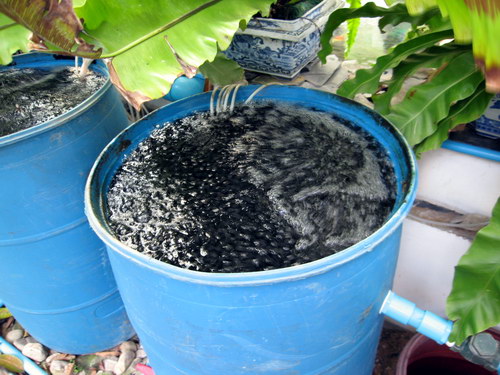

BCN009



ถังกรองขนาด 200 ลิตร
แบบ Moving Bed
ถังกรองนายสุข

ถังกรอง DIY แบบ " นายสุข I "
Designed and Manufactured By
คุณ Tao Bkk
Klick AquaTech



BIMS



ระบบกรองน้ำของ BIMS สำหรับ
บ่อเลี้ยงปลาทะเลขนาด 1,000 ตัน
BCN009
ระบบกรองน้ำของ BIMSที่ใช้
ฺBCN012-KLL
จำนวนมากถึง 24,000 ลิตร



การทดลองน้ำเขียว กับ Moving Bed



บ่อเลี้ยงปลาขนาด 1,000 ตัน
สถาบันวิทยาศาสตร์ทางทะเล
กับ
ระบบบำบัดน้ำแบบ Moving Bed ( BCN012 KLL)

ม.บูรพา

Quark I

Moving Bed Biological Filtration Tank, Pacckage Unit.

120 KB in PDF File





Quark I, Moving Bed Biological Filtration Unit



Fix film for Fixed bed system


FKP-312 : Trickling filter, submerged bed, decarbonization
Specific surface : 240 m2/m3
Specific weight : 29 kg/m3
Material : PP
Maximum water load : 30 m3/hr ( degasser)
FKP-319 : Trickling filter, submerged bed, decarbonization
Specific surface : 152 m2/m3
Specific weight : 23 kg/m3
Material : PP
Maximum load : 30 m3/m2/hr ( degasser)

BIO-NET® grid : Trickling Filter, submerged bed, decarbonization
Specific surface : 150 and 250 m2/m3
Material : PP

KVP-323 : Trickling filter, submerged bed, decarbonization
Specific surface : 125 m2/m3
Specific weight : 23 kg/m3
Material : PP
Maximum load : 30 m3/m2/hr ( degasser)
2H-NET : Trickling filter, submerged bed, decarbonization
Specific surface : 120 m2/m3
Specific weight : 27-45 kg/m3
Material : PP

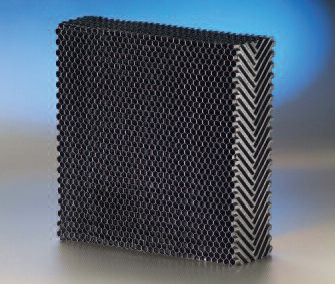

Humipacking FKP-158 : Mechnaical filter and Biological
filter for KOI pond and Poultry application
Specific surface : 320 m2/m3
Specific weight : 27-45 kg/m3
Dimmension : 600 mm x 1800 mm x 150 mm
Material : PP
KLP-638 : Solid and liquid separation
Specific weight : 27-40 kg/m3
Material : PP


Robust designed Pump for Aquaculture application. High flow - Low head -Less Power

Supplier : Linn - Germany

L-01 : 28.8 m3/hr @ 0 m-wg / 100 Watt
L-02 : 56.0 m3/hr @ 0 m-wg / 150 Watt
L-03 : 80.0 m3/hr @ 0 m-wg / 400 Watt

Click here to load data file in PDF



โต๊ะกาแฟ


Reference Customer & Project


CPF
Tilapia Farm
Duck King
จ้าวแห่งไข่ไก่ของเมืองไทย
KOI Farm
Palm Oil Manufacturing Plant
Marine Biotechnology Research Unit
Aquarium
Abalone Farm
Koi Farm
Ecomares Fish Farm
KMUTT, Supporter for Rainbow Trout Farm
Fish Farm
Thai Wah Food Products Co., Ltd.
Aquaculture Instistute
Feed Mill for Aquaculture Farm
