ANTI - LEGIONELLA - DRIFT ELIMINATORS FOR COOLING TOWERS

Type   TEP-SP 130
Material   Polypropylen / UV-resistent
Drift Loss % 0.002
Weight kg/m² ~4
Max air velocity m/s 4.5
Max spacing for support mm 1.200
Dimension:
Length
Weight
Height		 mm

0-2.400
0-600
125

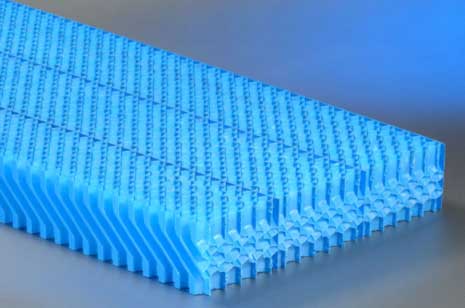

SANIPACKING® TEP-SP 130

Other properties of SANIPACKING® Drift Eliminator Elements

  • optimal droplet capture
  • high temperature (up to80°C) and UV-resistant
  • no deformation under direct sunlight
  • no brittleness and no sharp edges
1 Based on the CTI ATC-140 test method (Isokinetic Drift Test Code). These limits are guidelines only. The performance of the drift eliminator is indicated by the ratio drift loss/water flow rate. The efficiency of droplet separation depends on constant air velocity and an absolutely tight assembly of drift eliminator elements.
